NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Wed Dec 02 2009, 00:46

Good Morning,

I thought some of you might like to see the progress of my H2 pump.

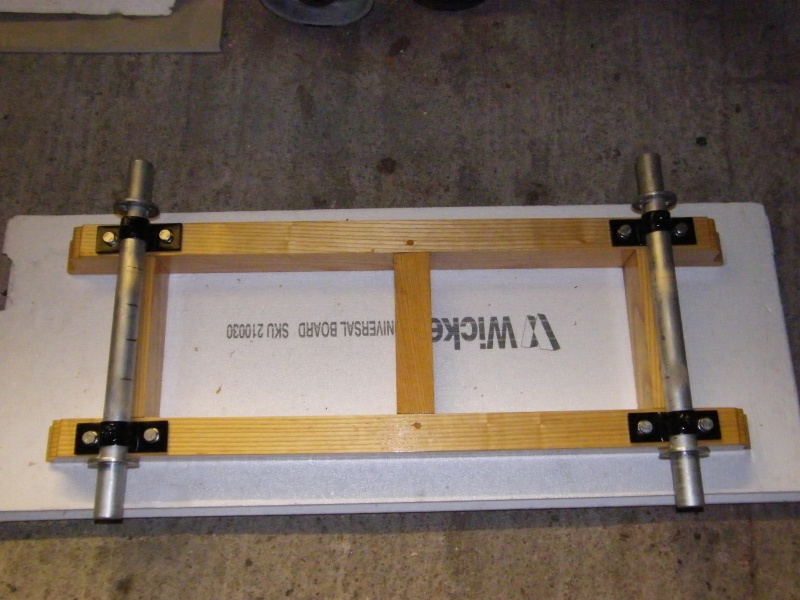

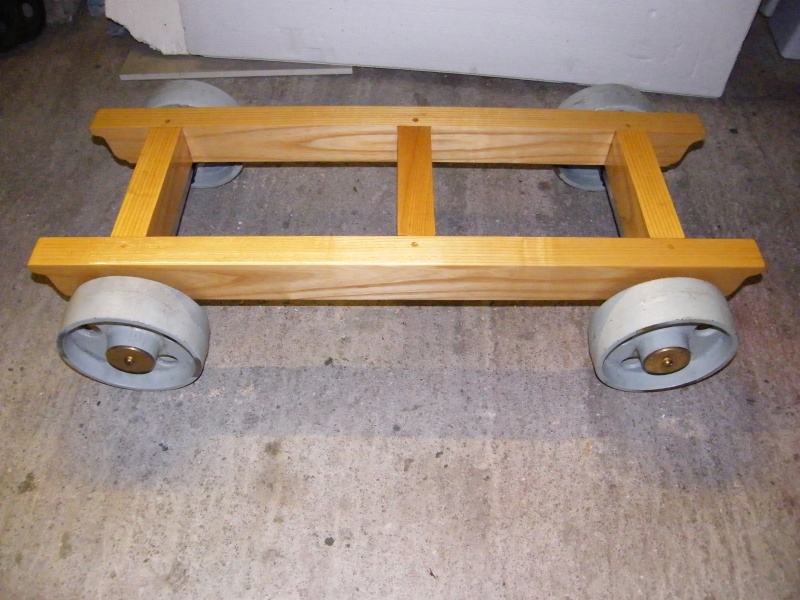

I have now made the frame, varnished it, made axels & mounting brackets.

I have just finished mounting them to the frame tonight so have taken a few snaps for you to look at.

I just need to rub down and paint my wheels now. A few coats of mid-brunswick and we will be nearly there.

Next job after that is to start work on the stainless steel water tank and then mount the pump to the frame.

Enjoy....................











regards

Martin[img][/img]

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Martin that looks great

Post by RAB on Wed Dec 02 2009, 06:45

I am going to be building a new trolley for my wolseley soon , up untill now i have always stained my trolleys red ceder colour, i really wanna start making light colour trolleys, so what wood did you use and were do you get it from, and what varnish is it, the trolley looks fab, did you make the axles up , if so cracking job gromit, Very Happy

RAB
Admin

Posts : 4911
Join date : 2009-07-21
Age : 46
Location : Carlisle

http://www.stationaryengineforum.net

Back to top Go down

er weres the pictures of the pump

Post by RAB on Wed Dec 02 2009, 06:46

get snapping or is it hush hush Sad

RAB
Admin

Posts : 4911
Join date : 2009-07-21
Age : 46
Location : Carlisle

http://www.stationaryengineforum.net

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Wed Dec 02 2009, 09:10

ryan wrote:get snapping or is it hush hush Sad

Wont be long,

All painted, just gotta put it back together now.

I will post some pictures when the pump is on the base and the tank is made and connected up.

Should look great when tis finished.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Wed Dec 02 2009, 09:20

ryan wrote:I am going to be building a new trolley for my wolseley soon , up untill now i have always stained my trolleys red ceder colour, i really wanna start making light colour trolleys, so what wood did you use and were do you get it from, and what varnish is it, the trolley looks fab, did you make the axles up , if so cracking job gromit, Very Happy

Hi Ryan,

I bought the wheels from ebay (2 sets) they where brand new industrial castors. I ground off the welds on the end of the castor casings and took the pins out and realeased the wheels.

then came the job of making new axels for them. Steel was far to heavy due to the fact that the hole was 38mm, so I decided to make them from aluminium. I cut all the parts and my mate who welds ali, welded the back plates on for me.

Nice brass front plates cut from 6mm hard brass and screwed onto front of the axel to hold the wheels on.

I then made some steel brackets to hold them onto the trolley. Red oxide 3 coats, primer 3 coats, black gloss 3 coats.

Stainless steel coach screws to hold them on and job done.

The Timber is Ash and the varnish is B & Q own brand exterier. lots of thin coats and then rubbed down with 360 finishing paper between coats.

I get the timber from our joinery shop at work, marked out the design on the ends and used the gear in the workshop to cut it out. If you need any timber Ryan let me know, not the cheapest but it is good quality.

Cut all the joints and put trolley together at home.

Proper job.

Cheers

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

thanks for the details mart

Post by RAB on Wed Dec 02 2009, 14:11

it does look brilliant, is ash easy to cut, is it just normal clear varnish you used cheers

RAB
Admin

Posts : 4911
Join date : 2009-07-21
Age : 46
Location : Carlisle

http://www.stationaryengineforum.net

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by Statman on Wed Dec 02 2009, 17:06

Hi Martin!!

Thats a nice trolley setup!

Cant wait to see the pump i bet it will looking splashin i mean smashing!!

You certainaly give it alot of prep!

Thanks
Adam

_________________
Wolseley WD2+H2 Pump
Bamford EG1
Petter M and 110v Dynamo
Lister D
Petter AA1
Plus Many more Aircooled Engines

Statman
Life Member
Life Member

Posts : 697
Join date : 2009-07-21
Age : 30
Location : PENZANCE,CORNWALL

Back to top Go down

That looks excellent

Post by ian webb on Wed Dec 02 2009, 17:39

Hi martin that is a very nice job youve done there like the rest cant wait to see the pump as well
cheers ian

_________________
Nelson Jumbo 1 3/4hp ,Petter M 3hp appletop, 1940 LISTER D with sheep shearing, 1951 Lister D reverse rotation, H1 H2 H3 pumps, Climax no2 pump,

ian webb
Life Member
Life Member

Posts : 660
Join date : 2009-08-27
Age : 51
Location : christchurch dorset

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by JONESEY on Wed Dec 02 2009, 21:35

Very nice job you done there give your self a pat on the back
Chris Smile

JONESEY
Admin

Posts : 2850
Join date : 2009-07-21
Age : 54
Location : Verwood, Dorset

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Wed Dec 02 2009, 22:58

ryan wrote:it does look brilliant, is ash easy to cut, is it just normal clear varnish you used cheers

B&Q clear exterior varnish Ryan.

Gives a great finish and you can get 2 litres for about £20

It is all about prep. build the coats up and use fine finishing paper between coats and it will come up like glass.

The ash timber is easy to cut and work with, but is nice and dence / heavy.

Cheers

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

PROGRESS OF PUMP

Post by BRASSO on Sun May 02 2010, 21:46

Evening,

I have now finished painting my pump and have now fixed it to the trolley.

have started putting it back together bit by bit.

Stainless steel tank to be fixed down and wheels to paint, then plumb it all in, and we should be finished.

Tis getting there slowly.

Just hard to find time to get it finished.







Cheers

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by JONESEY on Mon May 03 2010, 08:04

Looking great Smile Smile
Jonesey

JONESEY
Admin

Posts : 2850
Join date : 2009-07-21
Age : 54
Location : Verwood, Dorset

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by mike d on Sat May 08 2010, 22:17

HI MARTIN....

that looks great....

lets hope my H1 turns out that good...

regards....mike.

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Thu Jun 09 2011, 08:37







Picture one shows the stainless tank, with welds prior to rubbing down.

Picture two shows the welds on the tanks after rubbing down.

Picture three shows the tank after polishing up.

5 hours of work put in on this last night, and dont think it looks to bad.

Regards

Martin.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by stationary stu on Thu Jun 09 2011, 12:11

Smart looking job, well done.]

Stu.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by kevin bird on Thu Jun 09 2011, 19:10

Looks like you have put a lot of effort in, well done

kevin bird
Expert
Expert

Posts : 79
Join date : 2010-10-29
Age : 29
Location : Oldham

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Sun Jun 12 2011, 22:56

H2 pump now finished.

Some pictures below for you.

Regards

Mart.








BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by mike d on Sun Jun 12 2011, 23:01

very nice martin..thanks for sharing the pics mate....
were do you get your paint from??
regards,mike...

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Sun Jun 12 2011, 23:07

mike d wrote:very nice martin..thanks for sharing the pics mate....
were do you get your paint from??
regards,mike...

HI Mike,

The paint on the pump is polyurathane, which i get mixed at the local car paint supplier. It bruhses and sprays fantastic and you get a superb finish. The pump was sprayed on this one.

The engine was painted with enamel from Stationary engine parts. again when I thinned it down with fast flash you get an excellent finish on it.

Thanks for all the good feedback, its really appreciated.

regards

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by mike d on Sun Jun 12 2011, 23:11

thanks for that information martin..
it all helps with the finish on the engine or implement..
do you get the fast flash from the same place as the paint??
regards,mike.

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Sun Jun 12 2011, 23:19

mike d wrote:thanks for that information martin..
it all helps with the finish on the engine or implement..
do you get the fast flash from the same place as the paint??
regards,mike.

Yes I do Mike, its about £5.50 a litre I think. Brilliant thinners.

Cheers

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by mike d on Sun Jun 12 2011, 23:21

BRASSO wrote:
mike d wrote:thanks for that information martin..
it all helps with the finish on the engine or implement..
do you get the fast flash from the same place as the paint??
regards,mike.

Yes I do Mike, its about £5.50 a litre I think. Brilliant thinners.

Cheers

Mart.

thanks mart..must try it the next time i have to do some painting..
regards,mike...

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by stationary stu on Mon Jun 13 2011, 10:44

Looks great now it's all finished Mart. I see you found some taps or did you buy new?

Stu.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by BRASSO on Mon Jun 13 2011, 12:09

stationary stu wrote:Looks great now it's all finished Mart. I see you found some taps or did you buy new?

Stu.

Hi Stu,

Got a pair on ebay, and also got a matching pair now for the engine.

really pleased with the way it turned out, just gotta test it tomoroow night for leaks.

Regards

Mart.

BRASSO
Life Member
Life Member

Posts : 1248
Join date : 2009-08-15
Age : 42
Location : ST AUSTELL, CORNWALL

Back to top Go down

Re: NEW TROLLEY FOR H2 PUMP

Post by mike d on Mon Jun 13 2011, 12:14

hi mart..
there not the cheapest things to buy nowadays..
hope you got a good deal with them...ebay the place to find what you want... lol! lol!
regards,mike....

P.S..are ray and theo all ok?????

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down
