trolley building

View previous topic View next topic Go down

trolley building

Post by hob on Fri Jan 13 2012, 20:26

I'm working on my fourth trolley at the moment, one for a Lister D

The woodwork is not too much of a problem as i have the use of a workshop belonging to a retired wheelwright

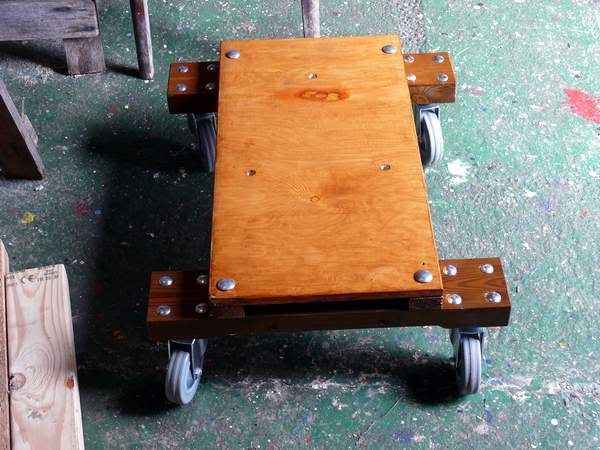

my first attempt was a trolley for a small pillar drill





i used some new caster wheels on that one..........

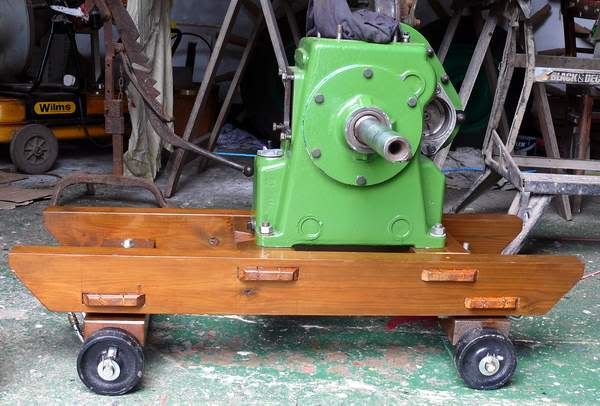

next i did one for the Petter A1





which i was reasonably pleased with considering it only cost me about 25 quid to build Very Happy

next i did a similar one for a water pump .........cost about the same Very Happy

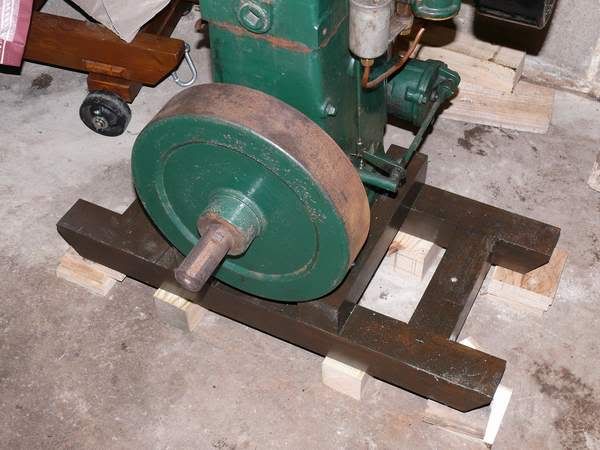

now for the Lister D I bought 2 fence posts for 6 quid and made this



now, being new to all this i spent a lot of time looking at pictures of engines to see what trolleys looked like and then designed my own to suit what they needed to carry.....................

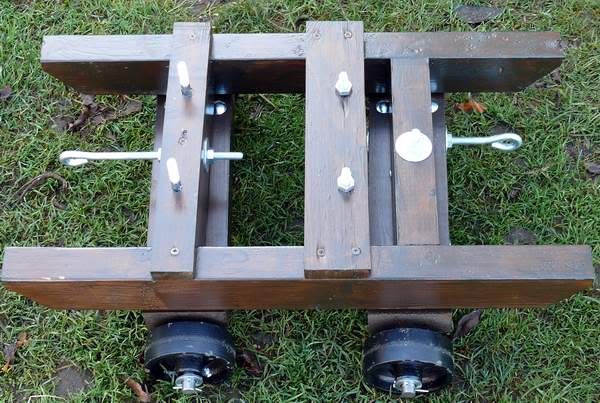

my problem is I can only see the top in pictures....................bearing in mind i don't have a workshop with metalworking machines the thing is how to attach the axles to the trolley, the only solution i have at the moment is to make a wooden jig to hold the bits in place and weld lugs onto the axles then bolt them on



it seems to work quite well but i was wondering how other people did theirs, i don't like the idea of just drilling holes through the wood and pushing the axles through, never looks strong enough to me .........


hob
Life Member
Life Member

Posts : 727
Join date : 2011-06-14
Age : 64
Location : East Suffolk

Back to top Go down

Re: trolley building

Post by JONESEY on Fri Jan 13 2012, 20:29

Looking good thanks for posting photos
Jonesey

JONESEY
Admin

Posts : 2850
Join date : 2009-07-21
Age : 54
Location : Verwood, Dorset

Back to top Go down

Re: trolley building

Post by kevjhnsn on Fri Jan 13 2012, 20:45

hi the hob
if you go to matts post
http://www.stationaryengineforum.net/t4205-steering-axle-modification

there you will find matts trolley with axles design and photos of mine in various stages of rebuild also for the larger lister A engines
hope this helps
thanks kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by hob on Fri Jan 13 2012, 20:56

Kev i can see some clamps that go round the axle............. my problem is i don't have any way of making them or anywhere to buy them for different size axles i guess my way of welding them is the best i can do.

my lister axles are 20 and 22 mm steel to fit the wheels that i was given, i spent a lot of today making a jig to weld lugs on to the axles the jigs only last for a few welds then the wood catches fire Laughing Laughing

hob
Life Member
Life Member

Posts : 727
Join date : 2011-06-14
Age : 64
Location : East Suffolk

Back to top Go down

Re: trolley building

Post by kevjhnsn on Fri Jan 13 2012, 21:05

this is for a villiers 25 tvo this was my first trolley build blind like you were








wood stain for the hardwood look as made from pallet wood its preweathhered wood so helps with less distortin and sap leakage through the varnishing



finished off wood with a good quality yacht varnish for depth and shine also fuel oil and weather proof well if its designed for the sea decks its good enough for a field lol



the axles are from forktrucks like parcel men use and fitted using steel wall u clamps for conducit screwed on the under side of wood as things get bigger
go to coach bolts rite through the wood and top ,smooth dome on the visual side with the square pulled into the wood so you can tighten iy good and tight underneath out of sight from the puplic

thanks kev


_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by hob on Fri Jan 13 2012, 21:09

fitted using steel wall u clamps for conduit

those might be useful thanks.

hob
Life Member
Life Member

Posts : 727
Join date : 2011-06-14
Age : 64
Location : East Suffolk

Back to top Go down

Re: trolley building

Post by kevjhnsn on Fri Jan 13 2012, 21:16

hob wrote:Kev i can see some clamps that go round the axle............. my problem is i don't have any way of making them or anywhere to buy them for different size axles i guess my way of welding them is the best i can do.

my lister axles are 20 and 22 mm steel to fit the wheels that i was given, i spent a lot of today making a jig to weld lugs on to the axles the jigs only last for a few welds then the wood catches fire Laughing Laughing


if you have a welder that way is best like you are making
sorry i thought you were like me with no acess to a welder set
just make them as square as you can with the jigs and then when on bottom of trolley loose
square them up to the trolley and then do a diagnal check to axle ends so it will roll in a strieght line and be more in ballance
hope this helps if not just ask
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by hob on Fri Jan 13 2012, 21:23

my brother used to be a coded welder in a ship yard ..........he does all my welding Very Happy

we have a small welding machine at the workshop Very Happy

hob
Life Member
Life Member

Posts : 727
Join date : 2011-06-14
Age : 64
Location : East Suffolk

Back to top Go down

Re: trolley building

Post by kevjhnsn on Fri Jan 13 2012, 21:39

sounds a handy man to know
say to him when hes finished this project with you
lol NOT SEEN PIGEON SH*T LIKE THIS FOR YEARS lol
my dad used to be coded welder years back and got that comment alot
his weld was ammazing so see and even old cowtroughs to vaci tanks and factory and barn building
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by RAB on Sat Jan 14 2012, 08:25

Hi Hob,

I have a copy of lister d trolly drawings, if you want a copy let me know and ill send you a copy.

Paul

RAB
Admin

Posts : 4911
Join date : 2009-07-21
Age : 46
Location : Carlisle

http://www.stationaryengineforum.net

Back to top Go down

Re: trolley building

Post by stationary stu on Sat Jan 14 2012, 10:22

What you need Neville is the end parts of the bolt (don't know what you call them) or make some by bending some metal around the axle, it need not be very thick.


[img][/img]

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: trolley building

Post by mike d on Sat Jan 14 2012, 13:31

HI KEV..
those wheels look like there from the trolleys that you see alot a shows,they are either filled with bits,or children or dogs etc..you wernt selling the remains on eBay were you...
looks like both of you are busy building..
keep up the good work..
thanks for sharing them with us all..
mike...

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: trolley building

Post by mike d on Sat Jan 14 2012, 13:32

hi Nevile..
looks like you have been very busy indeed..
thanks for sharing them with us all...
keep up the excellent work..
regards.mike..

mike d
Life Member
Life Member

Posts : 7591
Join date : 2009-08-26
Age : 55
Location : DORSET..BORN AND BRED AND PROUD OF IT.

Back to top Go down

Re: trolley building

Post by kevjhnsn on Sat Jan 14 2012, 17:16

[quote="mike d"]HI KEV..
those wheels look like there from the trolleys that you see alot a shows,they are either filled with bits,or children or dogs etc..you wernt selling the remains on eBay were you...
looks like both of you are busy building..
keep up the good work..
thanks for sharing them with us all..
mike...[/quote

no not me MIKE
they could be fitted to lots of things like that
but mine came of sack trucks returned broken to focus and payed a £5 for the 2 complete trucks
keeped the axles and wheels, weighed in the rest and got £3 back ,,all good lol
THANKS KEV

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by kevjhnsn on Sat Jan 14 2012, 17:22

hob wrote:Kev i can see some clamps that go round the axle............. my problem is i don't have any way of making them or anywhere to buy them for different size axles i guess my way of welding them is the best i can do.

my lister axles are 20 and 22 mm steel to fit the wheels that i was given, i spent a lot of today making a jig to weld lugs on to the axles the jigs only last for a few welds then the wood catches fire Laughing Laughing

hob
conducit from builders yards comes in 20 and 24mm not shore about 22mm though,
perhaps a thin rubber stripe would take up the play if there was any
thanks kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by hob on Tue Jan 17 2012, 17:35

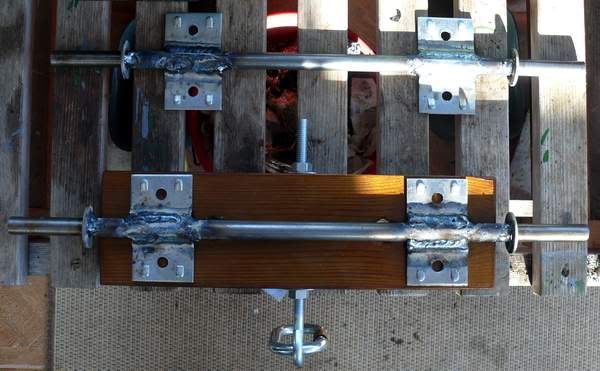

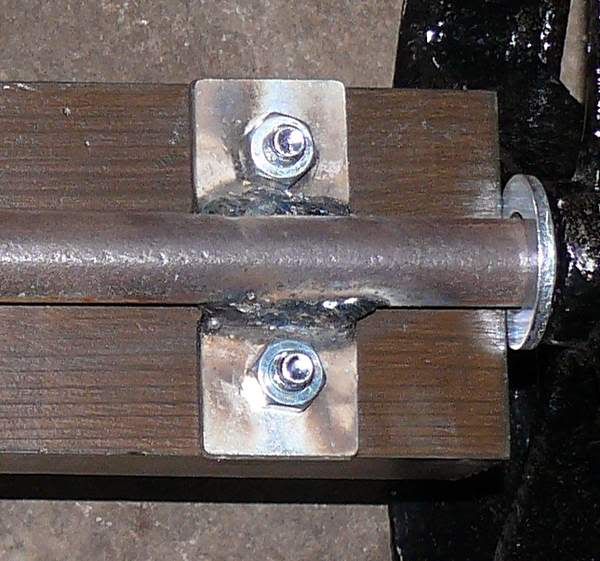

Well i settled for my usual weld some lugs on tactic

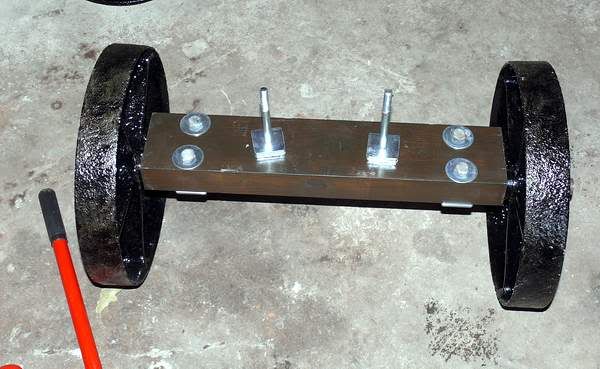

front axle

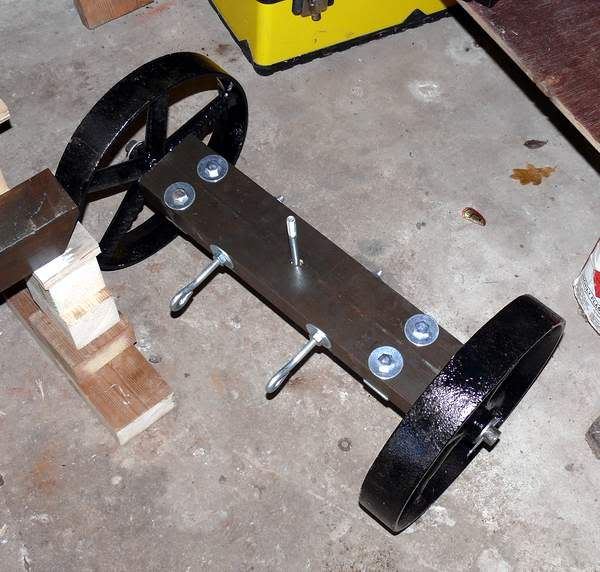

rear axle


cost about 14 quid for all the metalwork and 6 quid for the wood, wheels were given to me.
so here it is .......... my 20 quid trolley Very Happy Very Happy Very Happy



Neville

hob
Life Member
Life Member

Posts : 727
Join date : 2011-06-14
Age : 64
Location : East Suffolk

Back to top Go down

Re: trolley building

Post by kevjhnsn on Tue Jan 17 2012, 22:32

hi neville
looking good there
and a bargain set of wheels there too
im still trying to get 2 more of this type so i have a set of for my next trolley
a very nice job looks the part to
keep up the work
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: trolley building

Post by stationary stu on Wed Jan 18 2012, 10:45

A smart looking trolley Neville, don't you feel good when you get it sorted.

Stu.
