I'm at it again! Tarpen Resto No. 3

Page 1 of 3 1, 2, 3  Next

View previous topic View next topic Go down

I'm at it again! Tarpen Resto No. 3

Post by nutgone on Mon Dec 31 2012, 00:20

Look what I just bought on eBay....



Here's the listing....

http://www.ebay.co.uk/itm/Tarpen-400-Watt-Generating-Set-COLLECTION-ONLY-/140899660459?item=140899660459&ViewItem=&ssPageName=ADME:B:WNA:GB:1123&nma=true&si=ku5g8sy6w6DJ9UQX7VczBLkreWs%3D&orig_cvip=true&rt=nc&_trksid=p2047675.l2557

Funny thing is, the seller is the same bloke who bought mine off me a few weeks ago.


Last edited by nutgone on Mon Dec 31 2012, 10:50; edited 1 time in total

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by matt86 on Mon Dec 31 2012, 00:46

you love them dont you ....

does it run ?

matt

matt86
Admin

Posts : 5581
Join date : 2011-03-29
Age : 30
Location : swindon/ faringdon

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Mon Dec 31 2012, 01:04

Apparently he hasn't had it running, but it is complete.

It's going to join the very back of the queue though, it will live outside, under a tarp, until I can do something with it. Think of it as an investment for the spring. Might even end up showing it, & I would like to teach my nephews about 2 stroke engines & a bit about generators, if I can get them to stand still for 5 minutes!

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by Ianhw77k on Mon Dec 31 2012, 01:58

Keep going until there are no unrestored Tarpens left in the world Laughing Laughing Laughing

Ianhw77k
A credit to the forum
A credit to the forum

Posts : 455
Join date : 2012-07-02
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by kevjhnsn on Mon Dec 31 2012, 04:05

matt86 wrote:you love them dont you ....

does it run ?

matt

matt is that one of them tarpen genys with the exhurst in thee bottom frame
not seen one of these before on here Very Happy this week Very Happy
Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy Very Happy

think he will be doing these at the rallys like that team that does the grey fergys sripe and rebuild over the weekend at the shows lol
and next door the stationary tarpen pen Very Happy Very Happy


nutty matt
when do we start the stop watch on this one ready steady and nutgone tarpen says
hope this one is an easy fix for you mate
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Mon Dec 31 2012, 10:57

What I really want is a Type 42, these ones are Type 40, the Type 42 was a more compact unit, with a smaller genny (same output though). But they seem a bit thinner on the ground. Also, the Type 42s were all tin rather than cast ally, so many were scrapped or rotted away. They also look more modern, so are often overlooked by enthusiasts.

I suppose my first engine was a Tarpen (the one I still have in Ian's garage), so I do have a bit of a soft spot for them. I think I will use this one to fill in the gaps between other projects. I often get times when I seem to be scratching around for something to do, this engine can fill those gaps & keep me occupied.

I will need to buy in a few bits for this one though. I've pretty much used up my stock of Tarpen resto. bits & bobs, & finances are a bit stretched, so I doubt I will be rushing with this one.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Mon Dec 31 2012, 11:45

Happy New Tarpen, Nuts

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by braydh on Mon Dec 31 2012, 21:53

Thats a damn good buy grrrrrrrrrr wish i had seen it !!!! well least its with someone who can do a cracking job restoring it .

braydh
A true Stationary engine owner
A true Stationary engine owner

Posts : 130
Join date : 2012-10-20
Age : 51
Location : West Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Mon Dec 31 2012, 22:01

Picking it up tomorrow afternoon.

Braydh, are you still looking? I'll keep an eye out id you are. You'd probably prefer something water cooled though.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by braydh on Mon Dec 31 2012, 22:13

Always looking lol!

I will find something soon or maybe even a few things when the wifes not looking lol!


braydh
A true Stationary engine owner
A true Stationary engine owner

Posts : 130
Join date : 2012-10-20
Age : 51
Location : West Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Tue Jan 01 2013, 12:16

I can see someone sleeping in the shed before long, good luck bray lol! lol! lol!

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Tue Jan 01 2013, 23:32

I picked this one up today.

I think, as space is at such a premium here, I may just have to do it up & turn it around as quick as possible. It makes sense anyway, as it'll give me some cash to spend on the Stuart Turner P6, which still needs a barrel & a magneto to make it a runner. Also, it's living outside now, which I don't like. So the sooner it goes to a good home the better, unless I can find a dry spot somewhere for it.

So, I guess I'll be getting the paint out again this coming week & cracking on. It appears to be pretty sound, mechanically, so probably won't need a full rebuild. I know what they look like inside now anyway. I'll whip the head & barrel off, of course, & see how I go from there. I will also dismantle it for painting, separating engine from genny, so I'll get a good feel for the condition of bearings etc. as I go.

Hopefully it won't take too much time or money. I've got plenty of the former, but bugger all of the latter! Crying or Very sad

Pics will come tomorrow.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Wed Jan 02 2013, 12:13

Nuts is it a runner or not if not you going to get it running before you paint it?

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Wed Jan 02 2013, 13:21

Just been playing with it, there's no spark & the ports looked a bit crusty, so I've taken the head & barrel off. This one has a cast iron piston, whereas I'm sure the others had ally pistons. Dunno weather it's an older model, the engine numbers suggest it isn't, but they could have changed the numbering system, or maybe they just ran out of aluminium for the pistons?

The rings are seized solid, so I'm going to soak the piston in some meths. The ports need de-coking & the barrel could really do with honing & measuring, as there was a stiff spot near bottom of stroke (that could be due to the rings).

Looks like the engine might as well be stripped down completely after all. I've got to take the mag off anyway, the head & barrel are off already & the bottom part of the engine has to come off for painting, so I may as well split the crank cases & give everything a good clean, it shouldn't take long.

I'll just have to hope it runs when it goes back together, after painting. It should do, they're pretty reliable these engines. I don't want to dismantle the genny unless I have to though, they never come apart easy & never seem to go back together very well.

I've got enough paint, primer & materials to get most of it done, it looks like the genny has been rewired not too long ago, so I should be able to get it up & running & painted without spending too much money. Then I'll have to make up another lighting board, get some rubber flex, brass lamp holders & 110v light bulbs.

Shouldn't take me too long to get it done.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Wed Jan 02 2013, 13:25

Looking forward to seeing your progress over the next few days to see if it's got any wear or it's all servicable and you can crack on with it.

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Wed Jan 02 2013, 23:26

Right, I started by getting the piston off the con rod, then I set about getting the stuck rings out. The rings are very long in section, if that makes any sense, still quite thin in depth (as in how far they sit in the groove) but very wide (as in width of the groove), very old fashioned rings & very very brittle. these sort of rings are notorious for breaking when trying to un-stick.

However, I used as much patience as I could muster. I sprayed them with GT85 & left the whole thing for a while. I was going to get some meths to soak it in, as I've heard this is very good with stuck rings, but that would've meant moving my dad's car to get in the garage, so I thought I'd have a go without the meths.

I used the tapping method which Matt (Matt86 I believe) told us about on another thread, it was working quite well, but not well enough. These rings are a very tight fit in the groove, so I figured I needed something thinner than GT85, so I sprayed them with some brake & clutch cleaner, which penetrated very well. I was spraying with alternative squirts of GT85 * the brake & clutch cleaner, along with the tapping, by hand, with a punch, & both rings had begun to spring out at one end. Then I got my little slivers of metal (which I usually use to get rings off without breaking them) & slid one behind the top ring. It removed it a little further but I didn't want to push it too hard & break the ring.

Eventually, with a lot of patience & persuasion, I got both rings off & cleaned up the grooves, as well as all faces of the rings themselves. I still wasn't happy with the fit of the rings in the grooves though, they were very tight in there & I thought it won't be long until they're seized again. So I put some fine wet & dry paper on a flat metal surface & polished a little from the top & bottom surface of each ring. They're still tight, but better than they were.

I'm guessing this is a post war machine & the cast iron piston is probably a product of the lack of aluminium at those times. I'm pretty sure all the other Tarpens I've restored have had aluminium pistons.

Anyway, I followed this up by taking the engine off & getting back inside the workshop again (the Tarpen lives outside, but it started raining at this point, so I took the engine off to work on it in the dry).

Eventually I managed to get the flywheel off, the magneto is very clean, but I think the points need re-facing. the coil reads fine, so I'm guessing with a good clean-up we'll have life again.

I've completely stripped the carb down to its' component parts & left them soaking in my cleanest parts-wash solution, I will clean them all up & rinse with brake & clutch cleaner in the next day or so & rebuild the carb ready for reassembly of the unit.

I've also split the crank cases & removed the crank shaft. I had a few hurdles to get over to achieve this & at one point I thought I wasn't going to manage it, but after dinner I went back in there & got serious with the copper mallet. Now it's all sitting in my parts wash tray with a good spraying of parts wash solution, ready for a good scrub tomorrow.

I have taken a few pics, but I still need to get them off my phone & upload to photobucket. Might get round to that tomorrow.

I have thoroghly cleaned & reassembled the piston. Grooves all cleaned, rings all cleaned & the crown de-coked. I've also de-coked the ports & the head, which were all quite badly coked up. The dremmel helped me out here, she should breathe quite well when she's eventually fired up.

One little oddity I did come across, the exhaust seems to have been plated at some point. Not sure if it's chrome or nickel, not certain I will ever know, but it's not going to be easy to get it all off & with some still on there it's going to look patchy. You see I've stopped using high-temp black paint on steel & iron barrels, heads & exhausts, going instead for Kurust metal treatment (similar stuff to Jenolite & that stuff Andy (blackvanman) uses). it converts rust to a black coating & seems to withstand heat very well. But it only really works on ferrous metals, chrome won't go black like the rest of it, so I might just have to get some more high-temp black, I find the Plasti-cote stuff the best, but it aint cheap, & I hate buying spray cans, they're such a messy, expensive & wasteful way to paint. never mind, I need some for the Homelite anyway, that's got an ally barrel/head.

My final observation for this evening, the petrol tank is in a bit of a sorry state inside, it'll need a damn good clean. looks sound though, so no holes to repair, just needs a damn good clean.

So much for a quick restoration! Rolling Eyes

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by Ianhw77k on Thu Jan 03 2013, 01:35

Could do with some high temp black for the Briggs as well, and maybe for the Stuart Turner after that. Suppose I'd better chip in.

Ianhw77k
A credit to the forum
A credit to the forum

Posts : 455
Join date : 2012-07-02
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by steve w on Thu Jan 03 2013, 07:20

Nice little unit - will look forward to seeing some pics. steve

steve w
A credit to the forum
A credit to the forum

Posts : 498
Join date : 2012-09-15
Age : 44
Location : Nr Wolverhampton

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Thu Jan 03 2013, 12:15

Busy as ever Nuts, sounds as if your as stripped down as you'll get and it's all rebuilding next after the paint of coarse Laughing Laughing Laughing

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Fri Jan 04 2013, 20:09

OK, here's a few pics & a quick update on how I'm doing.

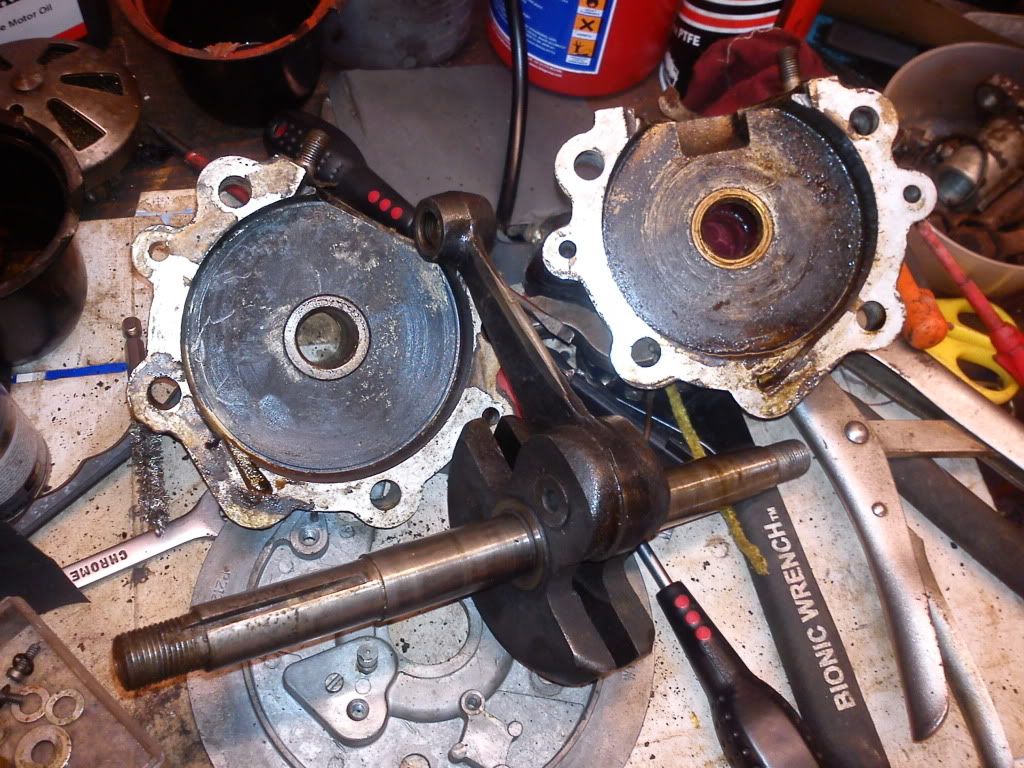

Crank cases before clean-up....

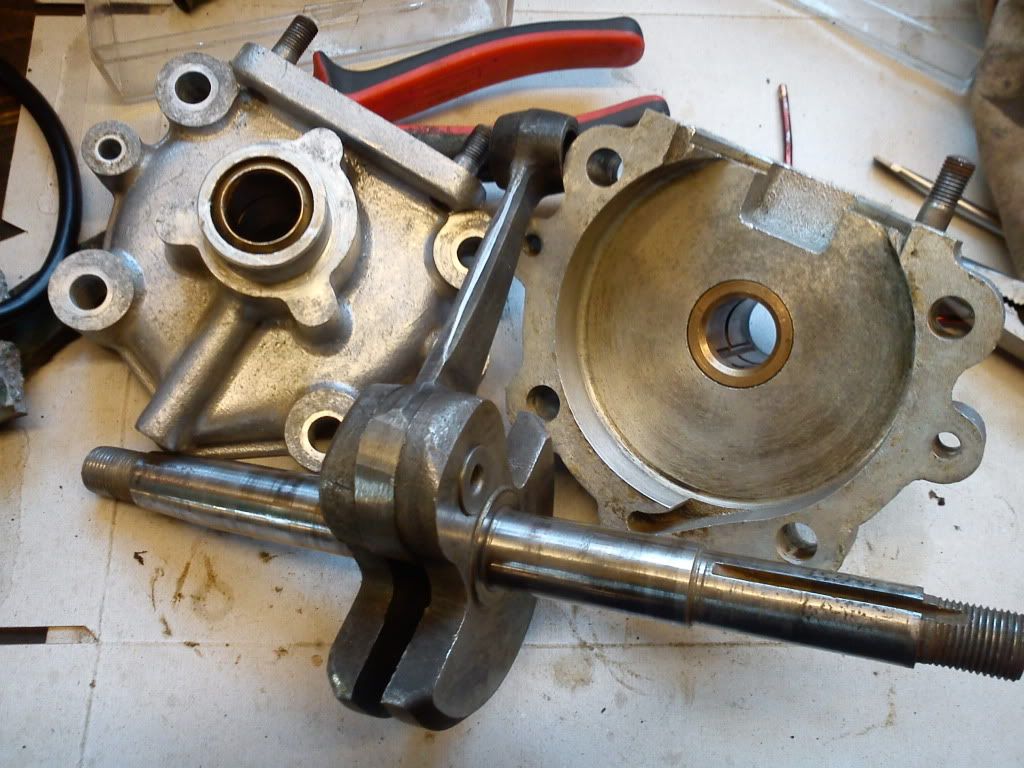

Crank cases after clean-up....



here's the carb, all cleaned up (I took it completely apart, even took the butterfly & spindle out)....

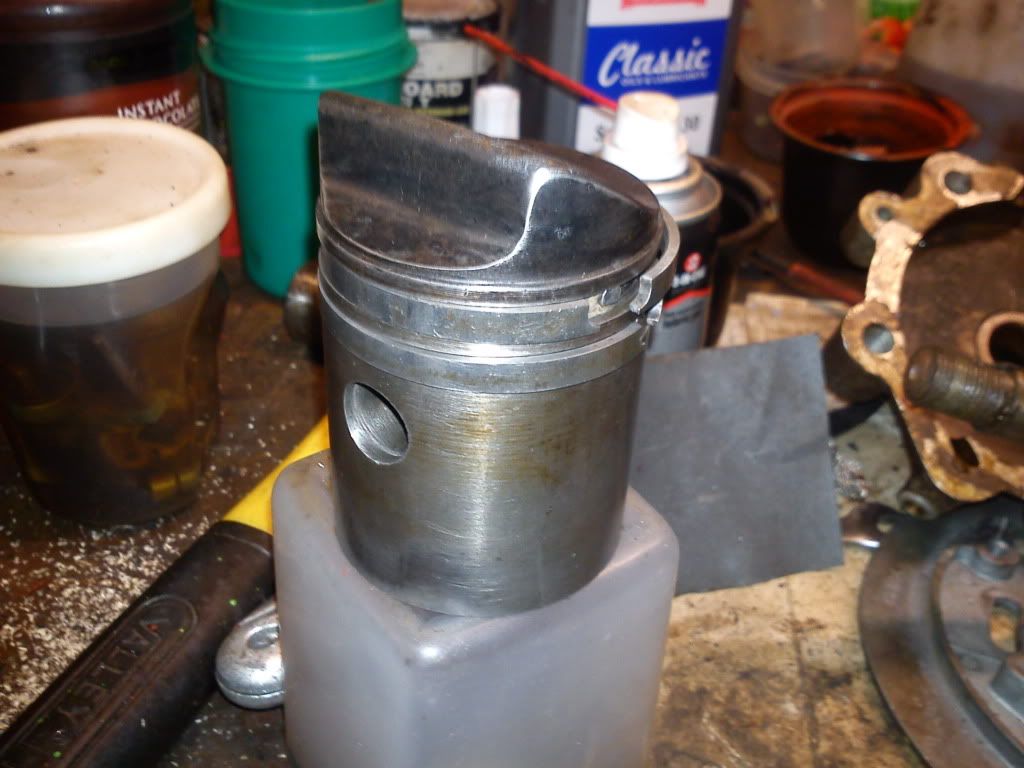

Nice clean piston....

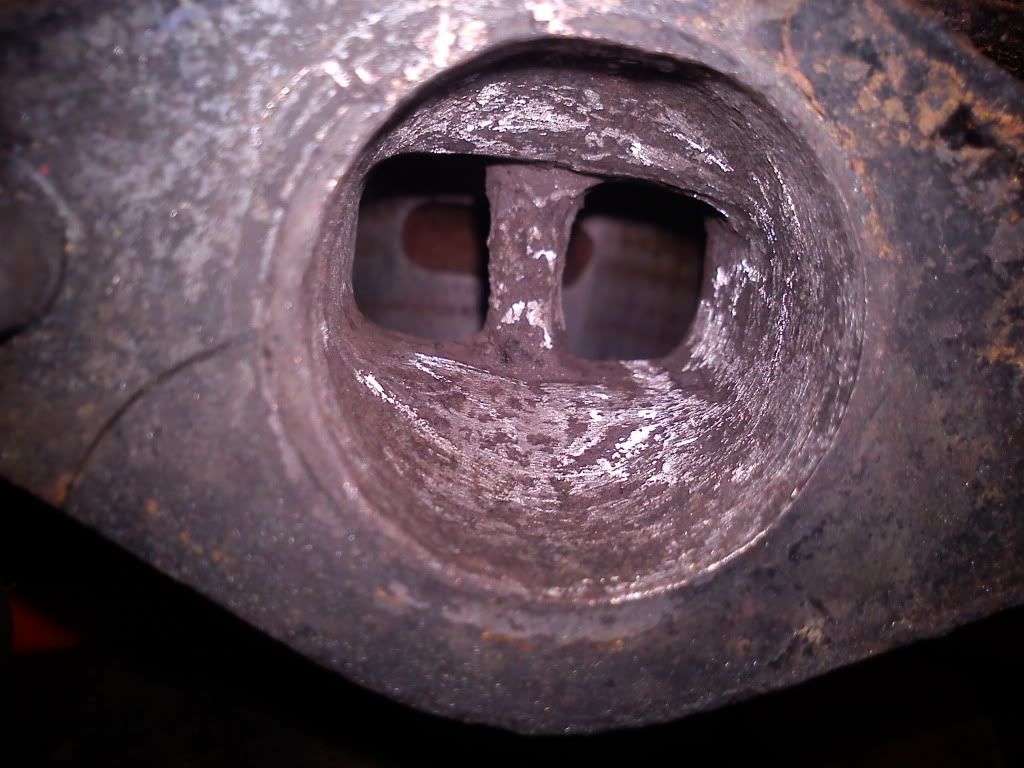

De-coked exhaust ports & clean bore....





& here's the magneto, after removal of the flywheel....

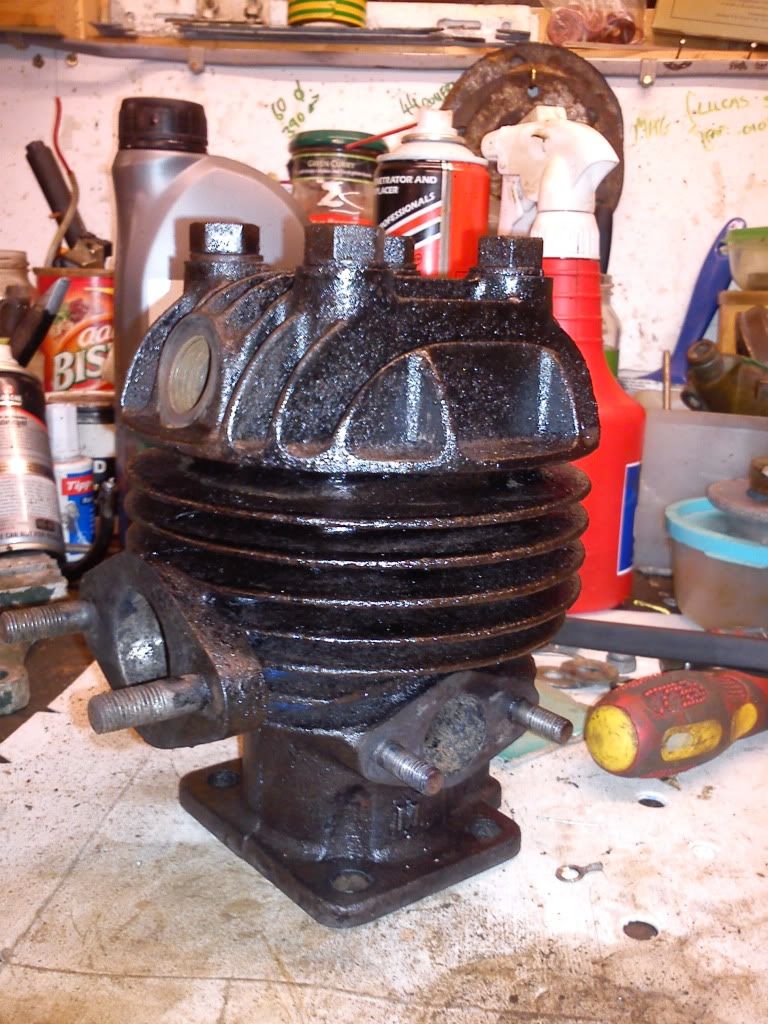

Today I decided to clean up the head & barrel & give them a coat of Kurust (which I have only just done)....



I also decided to test the condenser before completing my reassembly of the magneto. I went to a lecture on magnetos last night, held by a local vintage motorcycle club. The bloke there told me all about testing condensers. I tested this one & it's fine for capacitance, but has lost its insulation properties quite badly, so needs replacing.

Only trouble is they don't make these any more. The points on these mags are kind of back to front & require a condenser with a terminal, rather than a wire. So I had a look through my supplies & decided the only way to do it was to pull this one apart & rebuild it with a new capacitor. basically I need to get this blue thing inside the shiny brass thing (this is acually the finished article with a spare capacitor next to it, I forgot to take pictures as I was going, as I didn't know if it would work or not)....

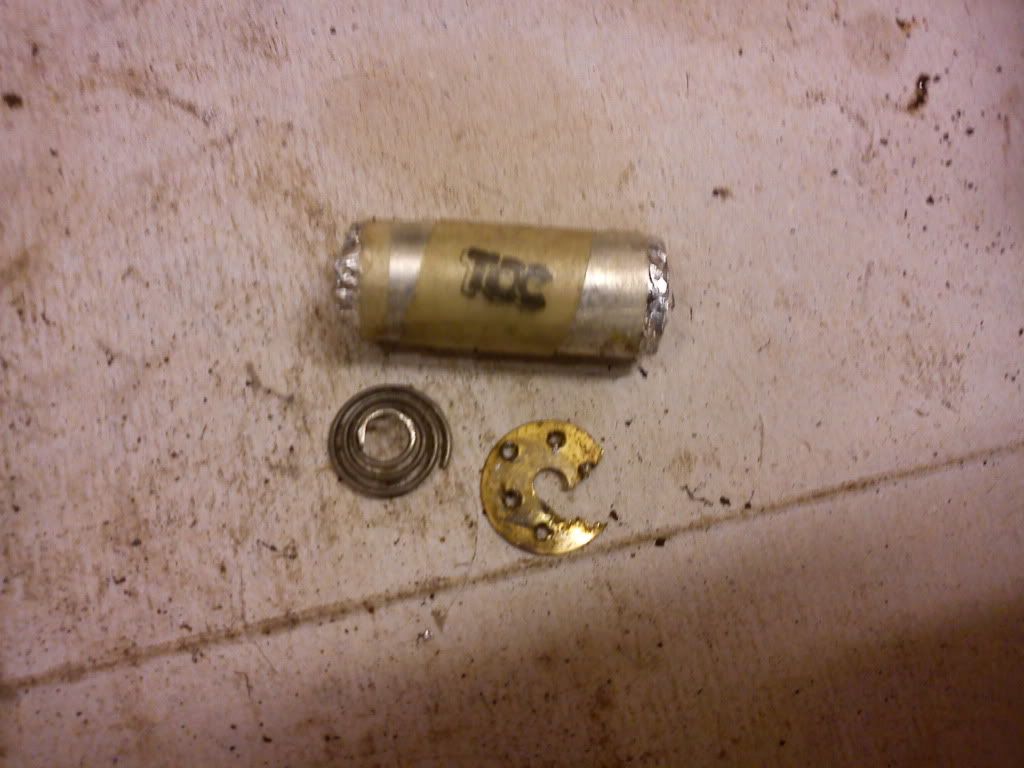

So I cut the bottom off the brass tube & pulled out the innards....

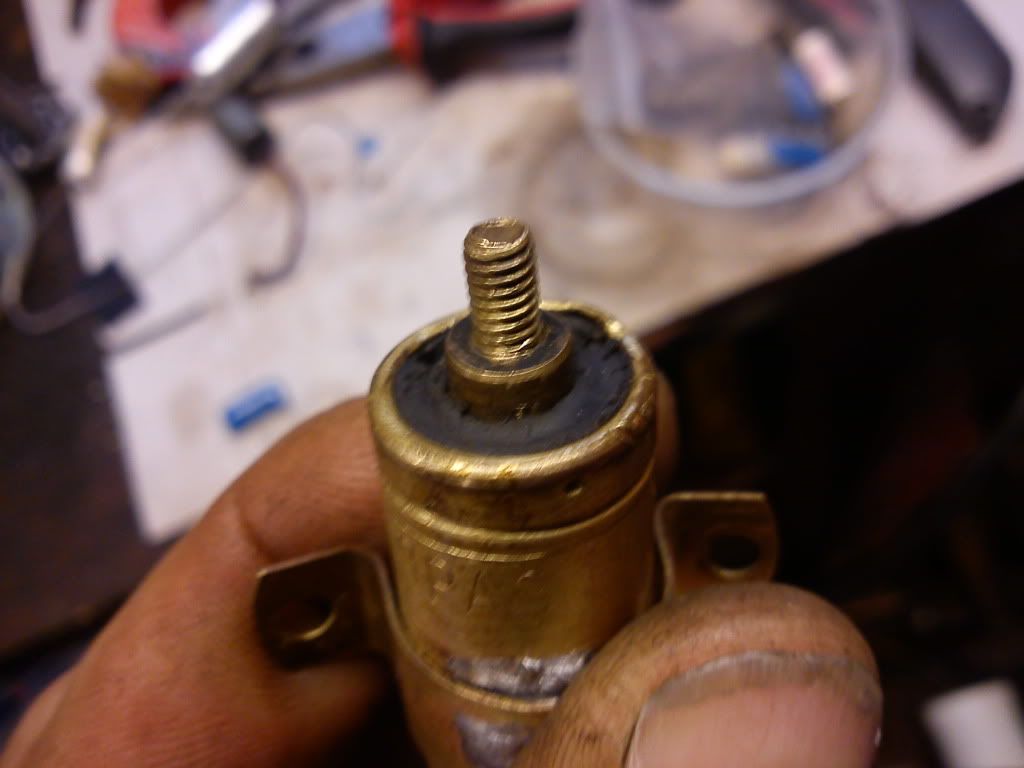

Then I managed to dig out the centre terminal post (this has a threaded sleeve on it which holds it into the top insulator, once this is removed the terminal screw just pushes inside & drops out the bottom.

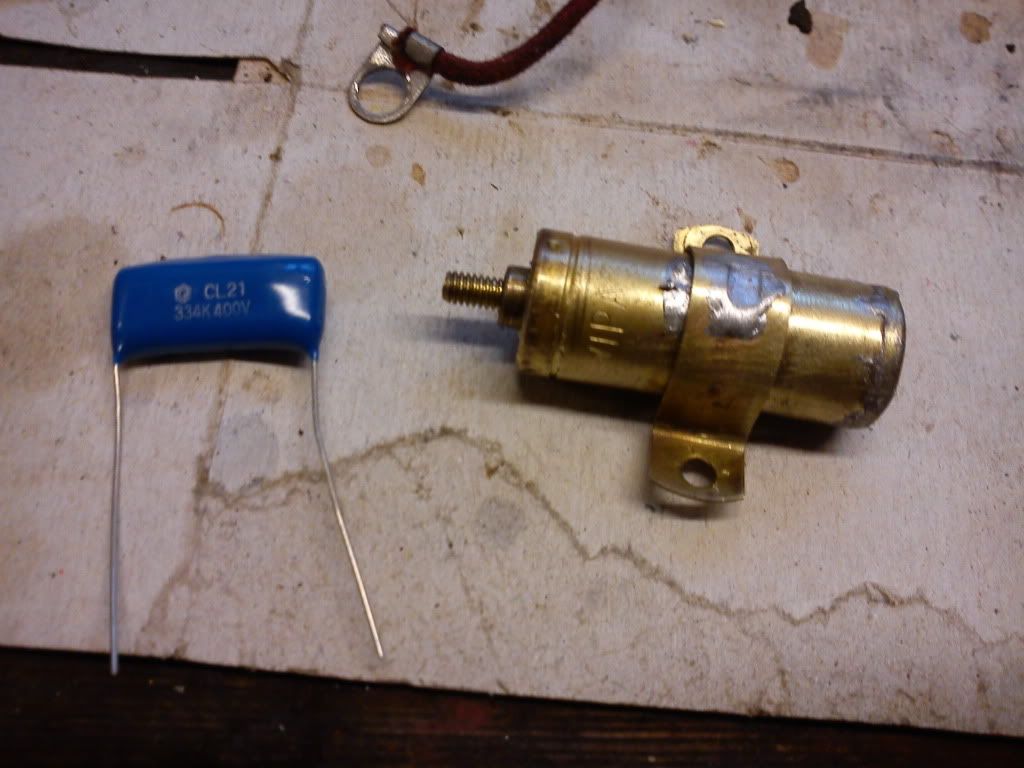

I then soldered one lead from the capacitor onto the end of this screw, bent it over to the right direction & covered it with some rubber self amalgamating tape to insulate it against the outer brass tube.

I then pushed this inside & secured the terminal back into the top end insulator with the threaded sleeve, leaving just the other lead of the capacitor sticking out the bottom. I could have just left it like this but I wanted it to look right, so I melted the solder on the bottom piece of the tube, (which I cut off earlier) to reveal a small hole in the centre, I fed this over the wire sticking out the bottom so I could solder this end back onto the tube. then I just bent the wire over, soldered it to the base & cut off the excess.

All I had to do then was re-solder the strap on, which came off earlier during some other experimanting I was doing with a blow torch (trying to find out how it went together) leaving me with this....







I've tested it again & it reads fine, so there's no short circuits or heat damage (tested it while still hot from soldering, as they're more likely to fail when hot & readings are less likely to be favourable). I'm actually really pleased with it. If anyone has any old ones which no longer work I would like to make a few more up, just to keep as spares.

Anyway, apart from all that I put the crank cases back together, with a new gasket & spent the rest of my time cleaning up lots of nuts, bolts, washers & clips.

i haven't started de-greasing & cleaning up the bits for painting yet. I haven't got any de-greaser, but have got a very large bottle of "CIF" kitchen/bathroom cleaner, I may have to use that as it was free & I'm skint!

If anyone wants a condenser made up, by all means send me a PM & we can discuss it. I do have more capacitors, but would need the old condenser to use. I also do the Bakelite WICO A-Series magneto condensers. I'm not out to set up a business or anything, but I don't mind helping out.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by braydh on Fri Jan 04 2013, 20:51

Good job on condenser they are an easy repair your soldering is better than mine. lol!
I'm still trying to get used to wearing glasses when doing things they drive me round the twist !!

Guess the magneto rebuilder gave a good talk .

Resto looking good can't wait to see it done hopefully I will get to see this one running but if I keep going to hassocks bound to see you're old one working at some point

braydh
A true Stationary engine owner
A true Stationary engine owner

Posts : 130
Join date : 2012-10-20
Age : 51
Location : West Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Fri Jan 04 2013, 21:53

braydh wrote:Good job on condenser they are an easy repair your soldering is better than mine. lol!
I'm still trying to get used to wearing glasses when doing things they drive me round the twist !!

Guess the magneto rebuilder gave a good talk .

Resto looking good can't wait to see it done hopefully I will get to see this one running but if I keep going to hassocks bound to see you're old one working at some point

The magneto talk was quite an eye opener, I just wish I had a coil winding machine, as I could quite easily do my own if I did. He's one of the best in the country by all accounts, as he uses a special vacuum encapsulation method of insulating the coils which many don't use, but he is expensive.

I learnt a few new things, but most of all I realised how simple most of the process is, to me at least, but I have experience of hand winding coils. Would love to get together with anyone who has a coil winder (hand or motor driven) & try a few coils. I've already got some of the insulating varnish.

P.S. I still can't get used to my glasses, but luckily I can still see pretty well without them, I have a built-in illuminated magnifying glass on my soldering iron stand, with holding clamps for smaller jobs, didn't need it for this though, but it does come in handy sometimes.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by braydh on Fri Jan 04 2013, 22:28

my coil winder prototype is almost there cheers

braydh
A true Stationary engine owner
A true Stationary engine owner

Posts : 130
Join date : 2012-10-20
Age : 51
Location : West Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by nutgone on Fri Jan 04 2013, 22:55

braydh wrote: my coil winder prototype is almost there cheers

Well I'm up for a get-together at some point, if you want to. I've even got an old mag we can have a go on (OK, so that may be looking a little too far ahead, but it's certainly not going anywhere).

The lecture consisted mainly of rotating coil magnetos, but the method is exactly the same for the average rotating magnet & even flywheel mags. It's something I've wanted to pursue for some time now, not really as a business venture or anything, more for my own benefit & possibly (if it actually worked) helping mates out.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by stationary stu on Sat Jan 05 2013, 13:06

I know very little about the inner workings of coils etc so it would be handy to know someone that could sort them for me at mates rates Wink Very Happy

I take it you've not found any other faults with the engine Nuts as your pushing ahead and looking to do some painting soon.

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: I'm at it again! Tarpen Resto No. 3

Post by Sponsored content Today at 14:06


Sponsored content


Back to top Go down

Page 1 of 3 1, 2, 3  Next

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
