tiny tim 12v 800w ?? geny set type L

View previous topic View next topic Go down

tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Fri Jun 14 2013, 02:57

just been to collect this off my rallyfield mate with autisum
as always called to guide him through what to look out for ie compression,spark, complete-ness, stat of dynamo internals ,frame mountings ect ect
got there tonight to find this well see the pics

no spark plug and all i could see was rust ,grit water and other bad sh1t in there

he was wire wooling the id plate when i pulled up his drive way  whoopsy

atco tank fuel pipe off h/t broken

running only weeks ago her beleaved his mate told him "great mate"

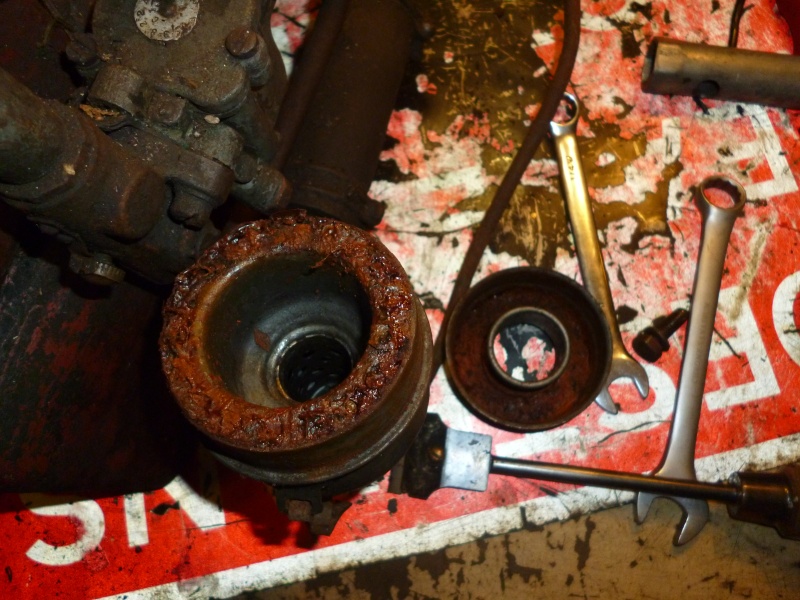

oil bath guaze filter "blob of rust water  bath filter


Last edited by kevjhnsn on Fri Jun 14 2013, 03:31; edited 1 time in total

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Fri Jun 14 2013, 03:27

it was bleeding watery slugy creamy sump oil before i started with the  spanners

2 finger tight bolts and there the engines guts Rolling Eyes

when i got the head off seized valves and a sad looking bore



ht lead and many other wires not connected were they should be scratch

rust and corrosion on the rotors and stators brushes missing ect ect

this man has been collecting aircooled geny and waterpumps for as long as ive been born "but does the same thing over and over again 3 -4 times a year
so here i go again see if i can get somthing to live out of this one ,if i can for him "£90 of iron at this time" but it is a collectable brand" just not a very good brand for spares available to find

if anyone reads this and has anything to offer in the lines of parts books ect ect please help as this is not going to be easy for me to sort for him
thanks kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by nutgone on Fri Jun 14 2013, 13:51

Are you on SmokStak Kev? This looks a little different to the usual Tiny Tim's I've seen, but should be pretty much the same underneath.

Strange looking air intake gubbins, must've been for very dusty conditions.

Anyway, SmokStak might be of some help, but then again many of their members are of the persuasion "if it ain't open-crank it ain't an old engine" (sadly some British enthusiasts are the same), but a lot of these smaller engines now have a good following on there.

You just need to pick the right section to post in, there are so many on there! scratch

What's the ignition system? flywheel mag or something else? The dynamo should be the same as any other, once you get past a certain stage. Wish I could get my hands on it, I could probably tell you more then. Condition kind of reminds me of my Homelite when I started on that.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Sat Jun 15 2013, 16:15

matt
there seams to be 2 styles of tinys
this has the ignition at the brushes end of dynamo ,just to add to the wiring flating around in there loose:roll:
smoke stak im on but as you say its a mine field to figure out were goes what on there
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by nutgone on Sat Jun 15 2013, 17:16

Could go in air cooled petrols or in the genny section. (mind you, it could go in a number of other places as well)

Genny section doesn't get much traffic though.

I thought it looked like the ignition came from that end, but I didn't think I would say in case I was wrong (it's not usual for small air-cooled engines after all).

I'm quite intrigued by it. :chin:

I always wanted a Tiny Tim, so will be watching with interest. See if I can dig anything up. Military boys might be able to help (they certainly helped me out with the Homelite).

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by stationary stu on Sun Jun 16 2013, 12:56

Kev did he store this engine in the bath???:stick lol::stick lol::stick lol:

Stu.

_________________
Engines are just like Pringles .... one is never enough.  Very Happy                                        I used to love tractors all I would ever think/talk about. Then one day out of the blue I went on to statinary engines, So you could say I'm an extractor fan.

stationary stu
Life Member
Life Member

Posts : 8962
Join date : 2009-07-21
Age : 58
Location : Stanley, Co. Durham.

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Mon Jun 17 2013, 11:51

stationary stu wrote:Kev did he store this engine in the bath???:stick lol::stick lol::stick lol:

Stu.
i think they did and why he didnt do the simplest of cheecks,god only knows other than him
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Tue Jul 02 2013, 18:01

got the dynamo of the engine
got the crank apart and out
got one good piston ring off the other are to fatuged to be used again:roll: theres a shock lol:roll:
got the head stripped and valves out and cleaned up, ready for a lapping in "seats were very good under that crap and rustb:shock:
stems and sleaves were like new considdering they were seized in solid
so it has a good head, canshaft,valves, conrod, piston and bore
just needs rings and a head gasket making ,if the rest comes up like these did ,but bearings and seals will be needed for the crank and the cam followers are still seized solid in the block base
so will keep messing with it from time to time ,gives the kevs cocktail time to work its way in or not Cool
i must be mental as im still trying to save it for him
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by nutgone on Tue Jul 02 2013, 21:10

No more mental than me or any of the rest of us Kev. You're doing a grand job.

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Tue Jul 02 2013, 21:36

nutgone wrote:No more mental than me or any of the rest of us Kev. You're doing a grand job.

its all in your user name weve all gone nutts on here ,but it can hit us at any age Laughing
its just every time i say thats the last one im doing for him 3 mnths later kev could you pop around ,have a little job for you again
and i dont even get a cuppa tea from him when i travell the 30 miles to his place knowing that its another what no body would buy from him even in the auctions , so he visits ian and he falls for it every time Rolling Eyes
and then thinking of it ,i do the same with ians calls to me Rolling Eyes Rolling Eyes  but if i dont , the scrap man will end up with it and many others that ive done for him in the past onan charging sets bsa chore horse johnson iron horse b&s water pumps villiers alcon pumps hatz diesels "god ive one of them at his waiting for me to do the tappets and filters ready for malpas rally No  ooh poo and a aircooled perkins diesel water pump set to get running again
another engine of his, that i cant find any info on,the last time i looked
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by nutgone on Tue Jul 02 2013, 22:08

Sounds like you know how to keep busy Kev. I feel like I haven't stopped in over 2 weeks, & I'm not working!

I thought winter was the time for working on engines? In summer we're just supposed to cart them along to rallies & sit behind them all day. Yeah right! I don't even get a chance to do that, usually up & down all day chatting to the public or cleaning spark plugs.

All good fun though, we wouldn't do it if it made us miserable. Wink

_________________
The "F" key is dying on my computer, please remember this when reading my posts, I'm trying to avoid using it.

The name's Matt, but call me Nutts if you like, there's already enough Matt's about.

nutgone
Life Member
Life Member

Posts : 2356
Join date : 2012-07-04
Age : 37
Location : East Sussex

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Tue Jul 02 2013, 22:41

so true matt so true
im usually being requested to sort somthing out on a display that wants to be a sod on the field
best one was at 1000 rally got a call from a stall holder ,kev got a man that needs your assistance
it was an amanco hit miss rolled top
his dad had  got it back from a mechanics workshop some 12mths back ,were it had been for 3 yrs being restored and rebuilt
but it wouldnt run still .
when i looked at it the timing marks were gone and random centerdots all over the cogs here there every bloody were
appart from in the right places , stood back itched me:scratch: scratch
and got the spanners out , put it all back together again  set the trip and lowered the mag on  blowed the fuel through to the carb
2 swings and it was running cheers ,i got a old man crying hunging me and even a kiss on the forhead Shocked
he said he had had taken it to clubs in his area  asked loads of opencrank  men to see what it was  but no one could figure it out
he said ,when he sore this "youngen" hes got no chance ,but bugger me your no  fool when it comes to engines

when i can do this for others with the same hobby ,that is  why i still do it  ,i love to help on others engines at the rallys as it helps pass the hrs and and helps me to work on engines i still dream of owning i.e the  nelson bros model n  i worked on 3 weeks back for another 60-70 yr old  engine man that was at there end  rallys as engine wasnt running anymore with  ignitor mita tube trouble , and the flick mag was dying a coil death ,so found a lad with some old mita bits and bobs  then i  lent him my back up fluresent coil and a battery
turned out he only lives 6 miles from me ,in the cider downing chats while i was working on it for him
i love to get stuck in and help were i can ,or watch and help others if needed  helps me to lurn tricks of the trade
im a hands on learner more than a book worm manual man
reading and writting arent my bestest of skills, but i live and let lurn , this forum is the longest book ive ever kept reading
so theres acredit to all members on here ,as this book never gets boring Very Happy
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by MauriceB on Sat Sep 07 2013, 20:31

Hello Kev,
I have a working tiny tim of a slightly different type for which I drew out a wiring diagram. I can send you a copy if you think it will help.

Maurice Blakey.

MauriceB

Posts : 1
Join date : 2013-03-11

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Mon Sep 09 2013, 11:51

MauriceB wrote:Hello Kev,
I have a working tiny tim of a slightly different type for which I drew out a wiring diagram. I can send you a copy if you think it will help.

Maurice Blakey.
hi maurice
you have a pm:D
if you could be so kind and send me a copy via email if easier
thanking you
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by Locknut on Tue May 12 2015, 18:51

Hi Kev,
I see that you worked on a Tiny Tim a few years ago - I have just got one that needs some work doing to it.Could you kindly let me know how you removed the rope start flywheel - I just cant get mine to budge and I need to get it off so that I can get to the points etc.Any help would be much appreciated.Thanks.
All the best,
Kev.

Locknut
A true Stationary engine owner
A true Stationary engine owner

Posts : 167
Join date : 2013-02-20
Location : South Devon

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Sun May 17 2015, 15:10

hi kev
all the ones ive done are retaining nut and keyed shaft, to get the nut off ,drop a large screw driver or simalar down to the engine flywheel, were the push to start button sits, there is a 1/2" hole were the 2 cowlings join top middle. down there will be the cast iron flywheel cooling fins, take your time but ive never broke a fin off them even the one abouve, there is no were else strong enough to hold it and seeing as theres a hole there it must for that reason
hope this helps
thanks
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by Locknut on Sun May 17 2015, 18:10

Hi Kev.
Top Man!
That worked a treat - I would never have thought of that! Thanks.
I have to take the head off as the exhaust valve is stuck open - is there anything that I should look out for/be aware of ?
You wouldn't happen to have a manual or wiring diagram for these engines would you by any chance?
All the best,
Kev.

Locknut
A true Stationary engine owner
A true Stationary engine owner

Posts : 167
Join date : 2013-02-20
Location : South Devon

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by kevjhnsn on Thu May 21 2015, 01:22

i have a manual but to be honest there not worth the paper there wrote on, wiring diagrams if only there was one. all i can do is if you say what bit and were, i will take some pics as best i can of the situation for you as my wiring diagram is my own caravan battery charging model L 124 tiny tim the working one, i spent 2 yrs seasrching for the manuals and then when i got one, its just a guide on starting one and were to tip the oil and petrol
lol
will do my best to help you with yours
kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by Locknut on Thu May 21 2015, 11:04

Hi Kev,
Thanks for that.I looked at  some info on another site,but it was general stuff and not workshop manuals , did'nt really help for a strip down.I did manage to find a wiring diagram of sorts on an American site for a Tiny Tim but not sure if it is for an L124.

I got the engine head off with a struggle - 4 of the bolts came out ok but the last 2 were awkward to say the least and I had to resort to the heat gun to shift them, and in so doing I mangled the scew heads ( they weren't in the best of shape to start with!) - do you know what thread they are and where I can get replacements please?
I am now trying to get the valves out - How did you manage to get yours out?




Any help or advice would be much appreciated.Thanks.
All the best,
Kev.

Locknut
A true Stationary engine owner
A true Stationary engine owner

Posts : 167
Join date : 2013-02-20
Location : South Devon

Back to top Go down

Re: tiny tim 12v 800w ?? geny set type L

Post by Sponsored content Today at 16:28


Sponsored content


Back to top Go down

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
