Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by Woodsman on Sat Sep 19 2015, 09:23

Going well Steef. Keep up the good work.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.

Woodsman
Life Member
Life Member

Posts : 553
Join date : 2014-08-24

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by StewartH on Mon Sep 21 2015, 09:21

Greetings Steef,

I'm really enjoying the updates - keep it up!

if in doubt on any of your woodwork/ carpentry jobs for the trolley have a look on youtube - there are loads of crafts people happy to show you how to make those really lovely looking joints with all the tips and tricks of the trade - they say "you can't teach an old dog new tricks" - well that's untrue! - I watched a few videos and now produce scarf joints like an old pro!

Best

Hamish

StewartH
A credit to the forum
A credit to the forum

Posts : 400
Join date : 2013-07-04
Location : Hampshire

Back to top Go down

reduced width of the axle

Post by Mark15 user on Tue Sep 22 2015, 19:42

Today I've reduced the width of the axle.
I've put in a smaller rectangular profile (25x25x2) to create more strength.

The next step is to weld the axle together.
Position of the steering arms has to be determined and welded on the king pins as well and a new steering rod has to be machined.
An U profile will be welded on top of the axle to clamp it on the wooden beam.
The top of the king pin will be shortened. I will weld on a M20 ring to enclose the kingpins on the shafts

Step by step I´m getting there. Very Happy

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Wheel suspension work in progress

Post by Mark15 user on Sun Oct 04 2015, 19:37

Dear forum members,

This weekend I worked on the front and rear axle to have a final setup before welding everything together.
I've created a steering mechanism for the draw bar from old iron of the go kart.

The rusty M12 bolts are temporary to check the fit.
The position of the pitmanarms on the picture is not final yet; this will be corrected during the welding


The U-shaped support with 2 holes was made by removing one side from a square bar 50x50x4mm.
The steering shaft rotates on a M10 stud.


After that the setup for the rear axle was shaped.

I've used a 20mm shaft which will be placed in a 30x30mm square bar.
The original idea was to mount the rear axle the same way to the wooden frame as the front axle;
I've changed the design to connect the rear axle to the longitudinal beams instead of the radial beam.


To avoid tilting of the axle a reinforcement will be added in the connection between the L profile and the vertical square profiles.

After the welding the blue paint and rust will be removed. I will repaint the axles in a dark grey color.
Will give an update when the welding is finished

Best regards,

Steef Pronk









Last edited by Mark15 user on Mon Oct 05 2015, 12:59; edited 8 times in total (Reason for editing : pictures added)

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by kevjhnsn on Fri Oct 09 2015, 21:44

looking great mate
crack on with it so i can see the finihed trolley
thanks kev

_________________
lol! " IF YOU DONT DO ANYTHING " "" YOU'LL NEVER MAKES MISTAKES "" lol!

kevjhnsn
Life Member
Life Member

Posts : 3598
Join date : 2011-02-10
Age : 38
Location : south cheshire

Back to top Go down

Welding, painting and final assembly of the front axle

Post by Mark15 user on Wed Nov 04 2015, 20:07

Dear forum members,

Some progress on the trolley. Very Happy
After the fixation of the steering arms the front axle was welded together.
Forgot to make pictures of the fixation; used a small  25x25mm aquare steel tube.
With 2 screw clamps I've connect the wheel shafts with the square steel tubes.
This ensured the straight position. I've made a jig to get the steering arms on the desired position.

Was a long time ago since I did some welding; but after some exercise I was able to weld the components of the axle together
It seems that the wheels can make the desired movement.  cheers


The welding sputters were removed as well as some necessary deburring. Also some grinding of the components was necessary.
On some spots the blue coating was peeled of and this had caused rust on the metal.


As topcoat a dark grey color was choosen. This seems to be a good combination with the wood and black wheels


After the painting the axle was mounted to the frame.
I used 2 M10 bolts as connection,


Next step is making the drawbar and weld the rear axle together.

Best regards,

Steef Pronk


Last edited by Mark15 user on Fri Nov 06 2015, 09:23; edited 8 times in total

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

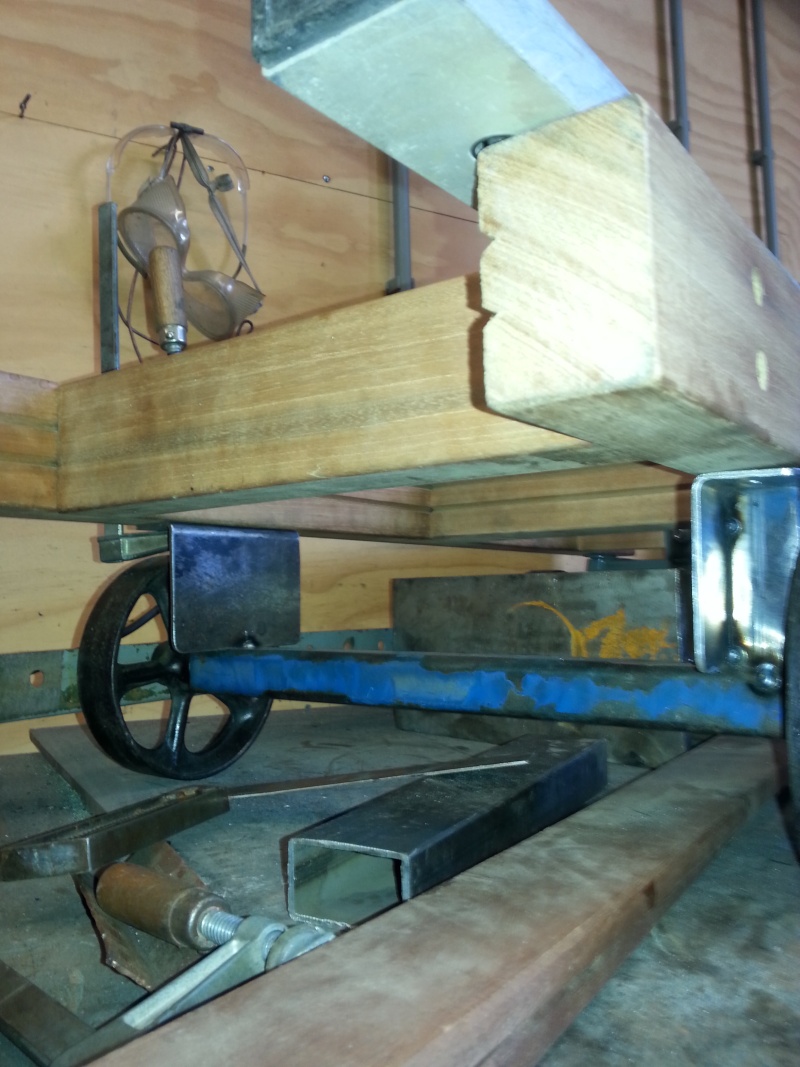

Welding the rear axle

Post by Mark15 user on Fri Jan 08 2016, 15:24

Dear forum members,

Welded the rear axle together today.
Alligned the rear axle by using two angled steel profiles.
I could use the M10 holes which are normaly locking the wheels Smile


The solid shaft fits perfect in the 30x30x3 square tube profile.
It seems that many parts of the earlier bought Go kart will become a second life now.
(Shaft, square tube, angled profiles)

After adjustment and allignment I've first tackwelded the axle together.



Working order:

1.) Tackwelding of vertical square tube profiles on U profiles

2.) Tackwelding of U profiles + vertical square tube profile to horizontal square U profile

3.) Finishing welding

4.) Tackwelding of reinforcement tube profiles (45 degrees)

5.) Finish welding of reinforcement tube profiles.




I could use the welding machine of a local hobby club located near by my hometown.
Very friendly and helpfull people
Most of them are retired craftsmen specialized in woodworking or metalworking.
(The average age is over 70; so I'm a junior member with my 45 years  Very Happy

After the welding I've ground the surface and gave it a quick spray of rustprotect.

Next step is to spray the dark grey topcoat.
After that the "floor"will be installed.

Keep you posted.

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Start the floor puzzle

Post by Mark15 user on Sun Jan 31 2016, 19:53

Dear Forum members,

I got an opportunity to get some wood for free.
Started to figure out how to buid up the floor.

Here is the first attempt.

Base will be formed by a multiplex plate to give it more strength
Please note this is only an impression.
Of course the wood has to be cut to length, sanded and a have a new coat.
Hope you like the idea. As always I'm open minded for your suggestions.

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by Woodsman on Mon Feb 01 2016, 09:26

Looking good Steef. My suggestion is to use Yacht Varnish - shows the grain off nicely and very weather proof.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.

Woodsman
Life Member
Life Member

Posts : 553
Join date : 2014-08-24

Back to top Go down

Drawbar woodworking and metalworking

Post by Mark15 user on Tue Feb 02 2016, 09:07

Dear forum members,

Started the work on the drawbar.
First designed the shape in my CAD system.


Steel holder is made by a rectangular tube 30x30x3 and 2 strips 25x5 mm.
The drawbar itself is shaped out of a piece of wood by flattening and shaping.
The planer thicknesser of the hobbyclub did the heavy work Very Happy

As topcoat for the drawbar I will use clear yacht finish.
The steelholder will be painted in the same dark grey color as the axles.
Below some pictures of the progress sofar. The hole for the wooden drawbar to be drilled.






A side view of the trolley


Next project will be the finish of the floor

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Work on the floor in progress

Post by Mark15 user on Thu Feb 11 2016, 16:10

Dear forum members,

Work on the floor is in progress.
Thanks to the hobby club I can use their machines to make the woodworking a little bit easier.
I've made small round chamfers on the tiles to create a "seam".
The tiles are cut to length but not fixed yet.
I will make support beams in the centre of the frame.
See below the pictures of the progress sofar.




Best regards,

Steef



Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

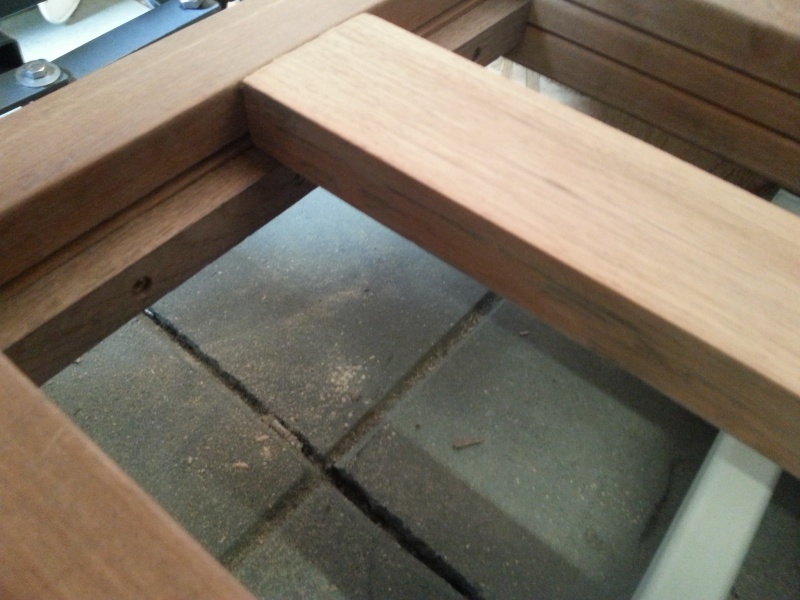

center support floor

Post by Mark15 user on Fri Feb 12 2016, 18:16

Dear forum members,

I've got some sparetime to create the center support for the floor.
See the pictures below.





I've decided to make the screw connections from the bottom side.
Then there are no screw heads visible on the floor.
Means some additional work but has a more decent look.

Center support at the front axle side will shaped the same way.

For the mounting of the pump I'm thinking to use the spanners in the picture below.

Need to figure out which type is needed.

Next step will be the (final) lining of the Villiers engine with the pump.
Have to find a pair of pulleys to get the right RPM.
Keep you updated.

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by Woodsman on Sat Feb 13 2016, 09:37

Nice job Steef - keep up the good work.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.

Woodsman
Life Member
Life Member

Posts : 553
Join date : 2014-08-24

Back to top Go down

Creating engine support beams

Post by Mark15 user on Wed Feb 24 2016, 09:25

Dear forum members,

The support beams for the engine were mounted yesterday.

See the pictures below.

Took some time to figure out the connection the front; however it is now a solid connection.



It is still possible to do an oil change with the motor mounted on the trolley.


Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Mounting the floor and milking set

Post by Mark15 user on Mon Feb 29 2016, 17:24

Dear forum members,

To create a smooth surface of the floor my first thought was to make screw connections on the bottom side.
However due to the thickness of the planks (8 mm) there is too less depth to make a rigid connection.
Besides that there is also a risk of cracking the planks by the screws.

I really felt "lost"and tried to figure out what to do. Crying or Very sad
Then I got a tip from a retired craftsman. "Why not glueing them ?"Idea
First I was a little bit skeptic, but he showed me some glued wooden connections.
He gave me a glue which is used by professional woodworkers.

I tried some samples and was amazed by the strength (as well as the "bubbling effect" of the glue)
After that I've started to glue the planks.
To ensure a good connection I've sanded the wood with a coarse sandpaper before glueing.
As I have only four clamps it takes some time. (Drying 24 hours; better safe than sorry)  Laughing

Finally I've bought a milking set. Was desperately seeking for a Benco milking set; however this was impossible to get.
To get the milking set ready for the show in Nuenen, I've decided to look for an alternative.
After a long search I've found a Westfalia milking set which has an old fashion look.
The vacuum and milking hoses have to be replaced as well as the inflation liners.
However after a first cleaning it seems not in a bad shape.


Picture of the trolley with the milking set

Please ignore the connection of the hose on the vessel. This is only temporary.
Need to buy a reducer from 1" to 3/8" to fit the tap.

Next step is to adapt some pulleys for the V belt connection.
Still waiting for the RPM counter; hoping to have it next week to determine the correct ratio.

Best regards,

Steef Pronk

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Villiers rear axle painted, pulley and spanner

Post by Mark15 user on Wed Apr 13 2016, 20:43

Dear forum members,

It's been a long time since I've posted an update.
Minor progress on the trolley since then.  Rolling Eyes
The rear axle has become his final dark grey top coat.


The RPM counter which I've ordered on Aliexpress didn't show up.  Mad  Sad
Will ask the seller for a refund

I've ordered a pulley of 63mm and a V belt at a local toolshop.
Meanwhile I've machined the ID of the pulley to fit on the Villiers shaft.
Only the keyway has to be machined and then the pulley is ready.

For the spanner I've decided to make them myself.
I wil use 2 strips of 50 x 10 mm  (length 325mm)
For connection of the motor on the strips I wil machine 4 threaded holes and mount threaded rods.
To mount the strips on the wooden floor I will make slotted holes in the strips and connect them with hexagon bolts.
between the strips a piece of wood will be placed to ensure that the oil sump is supported as well.


For the milking set I've changed some of the vacuum hoses. The old ones were in bad shape.
Milking liners needs to be replaced as well. Found a shop on the web who can provide these parts.
After varnish of the floor I will mount the Villiers engine and the Benco pump on their final position.
In the picture below I've made a model of the spanner strips from restpiece of wood.


Edit 16-4-2016

First threaded holes finished. See the pictures below.
Slotted holes to be done. I will use a milling machine to do that



Keep you posted!

Best regards,

Steef Pronk


Last edited by Mark15 user on Sat Apr 16 2016, 09:42; edited 2 times in total (Reason for editing : pictures added 16-4-2016)

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Making slotted holes by hand in 4 steps

Post by Mark15 user on Fri Apr 29 2016, 17:18

Dear forum members,

The spanners need 4 slotted holes. ( 2 per side)
Originally I thought to machine it by milling; then I had to outsource it.
Unfortunately I didn't find a source with a favorable rate.
Therefore I 've decided to make the slotted holes by hand.

The idea is to dril several holes in a row and shape the slotted hole by filing the remaining material.
A lot of work; however it seems that the final shape is acceptable.

First step is to determine the position of the holes by making a centrepoint.


Second step to dril holes with a diameter of 4mm.


Third step increase the ID of the holes with a dril of 10mm


Fourth step is removing the remaining material by filing.
A lot of work, but finally the shape is acceptable.


The strips will be painted black; however at the moment it's to cold for painting.
See the final mounting pictures below.




Started sanding off the old varnish of the floor. Nice work which helps to clear my head after busy workdays.
Will put on a clear yacht varnish to let it shine again. Very Happy
Remaining jobs: painting the moisture can and pipe work and making a toolbox.
Want to be ready for the Nuenen ralley 15th of May. Seems to be a challenge bounce

Keep you updated

Best regards,

Steef Pronk




Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Varnishing the floor and painting the spanner strips

Post by Mark15 user on Wed May 04 2016, 21:35

Dear forum members,

The temperatures are now at an acceptable level for painting and varnishing.
After a lot of sanding I've started to varnish the floor.


Clear Yacht varnish



First layer


Now 3 layers are done and the wood starts to shine again. cheers



The spanner strips were painted in matt black paint.


Made a list with to do items and there is some work to be done. Rolling Eyes


  • Varnishing the floor (Done)


  • Painting the spanner strips (Done)


  • Painting the moisure can and piping


  • Making toolbox on the rear end (Done)


  • Renew milking liners and milk hoses (Done)


  • Assembly and testing (Done)


Hoping to have it ready and working for the Nuenen Ralley (15th of May)
Pictures will be uploaded tommorow. (Battery of cell phone empty)

Keep you updated.

Best regards,

Steef Pronk


Last edited by Mark15 user on Mon Sep 12 2016, 15:33; edited 7 times in total (Reason for editing : pictures added)

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Tool box woodwork

Post by Mark15 user on Mon Sep 05 2016, 07:05

Dear forum members,

Seems a decade that I've post an update.
Milking set is running quite well. For the winter season I've to overhaul the the trothle mechanism / governor of the carburator.
To many play on the joints results in too many variaton of the ideal RPM.

For a long time I was searching for wood for the tool box and couldn't find what I was looking for.
Some people suggested to make it from plywood; however that was not what I had in mind.
When I visited a local DIY shop I've found oak panels from Cando. LxWxH (1000x200x18mm). Exactly what I had in mind Very Happy



On the hobbyclub I've made a miter joint on the sides and glued them together.
They have convenient tools to clamp the sides and ensure a straight connection.




I've decided to take of the cover completely instead of using hinges. The cover protrudes  3/4" from the cover on all sides.
To fit the cover in the box I've glued two small wooden pieces on the cover.



Placing of the bottom was a very precise job. It took some attempts to create a tight fit.




After that the connection to the trolley will be made by cup head bolts to keep the possibility to remove the toolbox.



The complete toolbox will be varnished with clear yacht varnish.

Varnished!!!!! Update 12-9-2016 cheers






Keep you updated.

Best regards,

Steef Pronk


Last edited by Mark15 user on Mon Sep 12 2016, 15:45; edited 1 time in total (Reason for editing : pictures added)

Mark15 user
A true Stationary engine owner
A true Stationary engine owner

Posts : 106
Join date : 2014-09-06
Age : 46
Location : Holland

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by RustonMark on Fri Sep 23 2016, 12:42

Well done Steef that's really nice. I am starting to make a trolley soon myself for my IP, I was thinking steel channel, but I have the offer of some oak.

RustonMark
Born to be wild
Born to be wild

Posts : 30
Join date : 2014-03-07

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by Woodsman on Fri Sep 23 2016, 16:49

Well done Steef - beautiful job.

_________________
Regards Paul
Tha can alus tell a Yorkshireman - but tha can't tell him much.

Woodsman
Life Member
Life Member

Posts : 553
Join date : 2014-08-24

Back to top Go down

Re: Trolley for Villiers Mk15 wooden toolbox new pics 5-9-2016

Post by Sponsored content Today at 02:25


Sponsored content


Back to top Go down

Page 2 of 2 Previous  1, 2

View previous topic View next topic Back to top

- Similar topics


Permissions in this forum:
You cannot reply to topics in this forum
